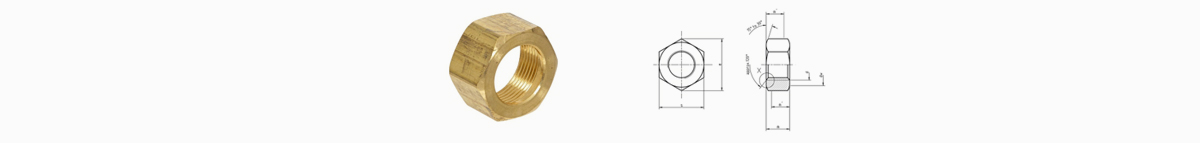

Description
Nominal Dia |
Pitch |
A(max) |
B(nom) |
M2 |
0.4 |
4 |
1.6 |
M2.5 |
0.45 |
5 |
2 |
M3 |
0.50 |
5.5 |
2.4 |
M3.5 |
0.60 |
6 |
2.8 |
M4 |
0.70 |
7 |
3.2 |
M5 |
0.80 |
8 |
4 |
M6 |
1.00 |
10 |
5 |
M8 |
1.25 |
13 |
6.5 |
M10 |
1.50 |
17 |
8 |
M12 |
1.75 |
19 |
10 |
M14 |
2.00 |
22 |
11 |
M16 |
2.00 |
24 |
13 |
M18 |
2.50 |
27 |
15 |
M20 |
2.50 |
30 |
16 |
M22 |
2.50 |
32 |
18 |
M24 |
3.00 |
36 |
19 |
M27 |
3.00 |
41 |
22 |
M30 |
3.50 |
46 |
24 |
M33 |
3.50 |
50 |
26 |
M36 |
4.00 |
55 |
29 |
