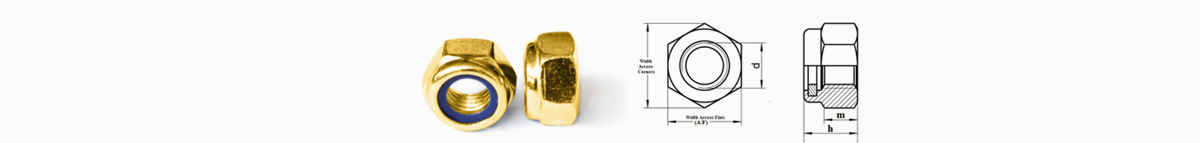

Description
Coarse Thread |
|||||
|---|---|---|---|---|---|
| d |
s |
e |
m min. |
m1 min. |
h |
| M2 | - | - | - | - | - |
| M2.5 | 5 | 5.51 | 2 | - | 3.8 |
| M2.6 | 5 | 5.51 | 2 | - | 3.8 |
| M3 | 5.5 | 6.01 | 2.4 | 1.65 | 4 |
| M3.5 | 6 | 6.64 | 2.6 | - | 4.5 |
| M4 | 7 | 7.66 | 2.9 | 2.2 | 5 |
| M5 | 8 | 8.79 | 3.2 | 2.75 | 5 |
| M6 | 10 | 11.05 | 4 | 3.3 | 6 |
| M7 | 11 | 12.12 | 4.7 | 3.85 | 7.5 |
| M8 | 13 | 14.38 | 5.5 | 4.4 | 8 |
| M10 | 17 | 18.9 | 6.5 | 5.5 | 10 |
| M12 | 19 | 21.1 | 8 | 6.6 | 12 |
| M14 | 22 | 24.49 | 9.5 | 7.7 | 14 |
| M16 | 24 | 26.75 | 10.5 | 8.8 | 16 |
| M18 | 27 | 29.56 | 13 | 9.9 | 18.5 |
| M20 | 30 | 32.95 | 14 | 11 | 20 |
| M22 | 32 | 35.03 | 15 | 12.2 | 22 |
| M24 | 36 | 39.55 | 15 | 13.2 | 24 |
| M27 | 41 | 45.2 | 17 | 14.8 | 27 |
| M30 | 46 | 50.85 | 19 | 16.5 | 30 |
| M33 | 50 | 55.37 | 22 | 18.2 | 33 |
| M36 | 55 | 60.79 | 25 | 19.8 | 36 |
| M39 | 60 | 66.44 | 27 | 21.5 | 39 |
| M42 | 65 | 72.09 | 29 | 23.1 | 42 |
| M45 | 70 | 76.95 | 32 | 24.8 | 45 |
| M48 | 75 | 82.6 | 36 | 26.5 | 48 |
